Precision Quality  Innovation since 1880

The L.S. Starrett Company, founded in 1880, manufactures more than 5,000 variations of Precision Tools, Gages, Profile Projectors, VDO Microscopes,
Measuring Instruments , Force/Materials Testing Machines and Saw Blades for industrial, professional and consumer markets worldwide.

Starrett, a leader who has set the standard for fine precision tools in industry for over 130 years, has rightfully earned the title, "World's Greatest Toolmakers".



click photos for details/ คลิ๊กที่รูป เพื่อดูรายละเอียด



Horizontal Bence Optical Comparator

Profile Projectors with 16 inch( 400mm. ) diameter Screen.

Changeable Lens, X-Y stage travel , Readout unit selectable : many options of Quadra -Chek  or Metlogix Readout .

Clear Precision Optic  with high accuracy system.

              Model  : Stage Travel  Horizontal x Vertical

              HE400 :  10" (250mm)  x  4" ( 100mm.)

              HB400 :  12" (3000mm) x  6" ( 150mm.)

              HD400 :  16" (400mm) x  6" ( 150mm.)

โปรไฟล์โปรเจคเตอร์ จอ 400 มม.

มีหลายรุ่นให้เลือก ตามขนาดแท่นวางชิ้นงาน

Horizontal Floor Standing Optical Comparator

HF600 Profile Projector with 24 inch( 600mm.) Diameter Screen.

Motorized X-Y axes standard, drive through joystickand variable speed control

Available with Metlogix or Quadra-Chek digital readout

Stage Travel : Horizontal 12"(300mm.), Vertical 8"( 200mm.)

โปรไฟล์โปรเจคเตอร์ ขนาดจอ 600 มม.

แท่นวางชิ้นงาน แบบมอเตอร์ ควบคุมด้วย จอยสติ้ก

Horizontal Floor Standing Optical Comparator

HF750 Profile Projector with 30 inch( 750mm.) Diameter Screen.

Motorized X-Y axes standard, drive through joystickand variable speed control

Available with Metlogix or Quadra-Chek digital readout

Stage Travel : Horizontal 12"(300mm.), Vertical 8"( 200mm.)

โปรไฟล์โปรเจคเตอร์ ขนาดจอ 750 มม.

แท่นวางชิ้นงาน แบบมอเตอร์ ควบคุมด้วย จอยสติ้ก

Vertical Bence -Top  Optical Comparator

Profile Projectors High perfomance at Low price with integrated LED readout for Model VB300

 Available for VB300 and VB400 : Quadra -Chek  or Metlogix Readout .

Clear Precision Optic  with high accuracy system.

              Model VB300 Stage Travel : 4"(100mm.) x 4"(100mm.) / Focus Travek 4"(100mm)

              Model VB 400  Stage Travel : 8"(200mm)x 4"(100mm) / Focus Travek 4"(100mm)

โปรไฟล์โปรเจคเตอร์แนวตั้ง ขนาดจอ 300 และ 400 มม.

Vertical Floor Standing Optical Comparator

Profile Projectors Model VB600 , 24 inch(600mm.) diameter Screen

with Large screen for Large component in Electronics, Stamping and Extrusion Industries

30 degree angle From Horizontal for clear , easy viewing

Avalable with Metlogix or Quadra-Chek Readout unit

Stage travel : 8"(200mm.) x 4" ( 100mm) / Focus Travel"(100mm)

 โปรไฟล์โปรเจคเตอร์แนวตั้ง ขนาดจอ 600 มม.

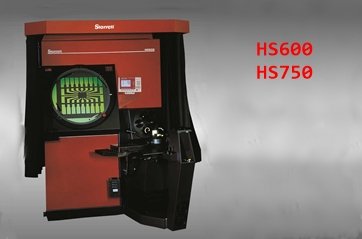

Side Bed Optical Comparators

Profile Projectors Model HS600 and HS750 have all the same feature as Model HF600 and HF750 , except it has the screen positionset to the side of work stage area.

allowing close, comfortable and unrestricted access to viewing and control area.

Serving  with all your requirements

โปรไฟล์โปรเจคเตอร์แนวนอน

แบบ แท่นวางชิ้นงานอยู่ด้านข้าง

ช่วยให้ผู้ใช้งาน มองจอในระยะใกล้ ได้

ขนาดจอ 600 และ 750 มม.

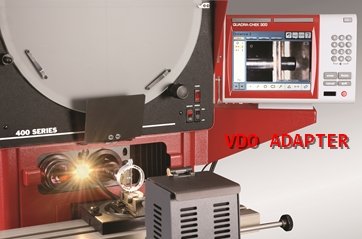

Optical Coparator Video Adapter

OV2 is  a special Zoom lens and Video Camera adapter that can be interchanges with fixed  Magnification Lens

on Starrett Profile Projectors. Cobined with Metlogix M3  softwrae and Touch screen PC

with 6.5:1 Zoom lens give up to 240X Video Magnification


TOV2 is telecentric lens and Video Camera

Selectable with choice of 0.16X, 0.3X or 0.5X Lens easy to install work with Metlogix M3 software.

Horizontal Digital Video Coparators

Model HDV300, HDV400

HDV300CNC, HDV400CNC and  HDV500CNC

Combine the best Feauture of a Horizontal optical Coparator and a Vision nmetrology system

Very rigid design with high accuracy. Various magnification lens and Stage

Metlogix M3 software with DXF/FOV option Pack



Video Inspection Systems

KineMic ( KMR)

Video microscopes are family of 7 Models for inspection and vision metrology systems.

They are ideal for receiving Inspection, quality assurance and documentation.

KimeScope

is a digital Video Camera with precision optic fit in one hand operation. place on sample and viewing .

easy use and inspection with upto 140X magnification

Vision Systems
Video-Based measurement systems combine high-resolution image, powerful software and precision mechanical platforms

Manual Vision Metrology Systems

MV and MVR series, general purpose,non-contact measurement systems

with zoom optic ( MV serie) and Zoom or Telecentric Optics Lens

for Micron level resolution( MVR series) with Metlogix M3 software


Automatic Vision Metrology Systems

AV and AVR series, general purpose,non-contact measurement systems

with zoom optic ( AV serie) and Zoom or Telecentric Optics Lens

for Micron level resolution( AVR series) with Metlogix M3 software
Force and Material Testing

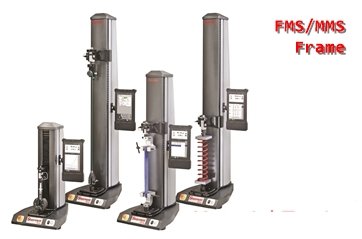

FMS/FMD Test Frame are for Force Testing Frame
MMS/MMD Test Frame are for  Material Testing Frame , with extensometer Channel

FMS /MMS Frame is mean Single column Test Frame  with various load capacity

500N , 1000 N , 2500 N and 500N, vary Crosshead travel

Variable speed with accuracy position measurement at

+/- 20micron for FMS and +/- 5 micron for MMS



FMD /MMD Frame is mean Double column Test Frame  with various load capacity
10,000 N, 30,000 N and 50,000 N, vary Crosshead travel
Variable speed with accuracy position measurement at

+/- 20micron, for FMD and +/- 5 micron for MMD

Software & control Systems

L2 System is idea for  tension, compression, flexural, cycling, application

Measure calculate result min, Max, average  and Breaks.

L2 Plus give more for measure and calculate of point, slope and intercepts, min-Max, Breaks , Peak....

L3 represent a new and easier solution for creating Test , Measure stress, strain, load, elongation , compression ....

Create setups internally standard from ASTM, ISO, DIN , TAPPI or your own custom test method

S2 systems special design for Spring Testing

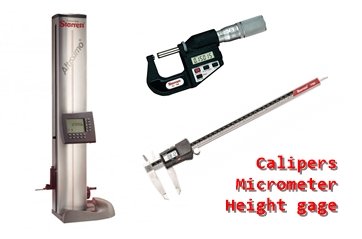

Precision Tools
Micrometer, Calipers, Height Gages, Depth gages, Dial Gages, Special Gages, Gauge Block , optical flat and etc..

Many Models of precision tools:

Anvil Micrometers, Blade Micrometer, bench micrometer,

Can Seam Micrometers,

Dept Micrometer , inside / outside Micrometers,

Vernier , Dial and Digital calipers

Depth gages, Height Gauges,

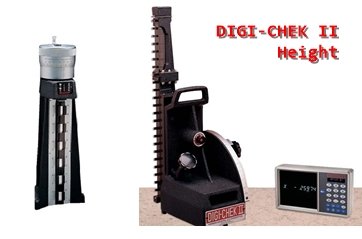

Starrett DHG Deries DIGI-CHEK II Height Master is simple two step opertaion

in less than 10seconds. Rapid and precision

For 258, 258M series DIGI-CHEK Height gages, the accuracy gauge block are

combined with precision micrometer head.

Easy handling with acuracy and longlife Features

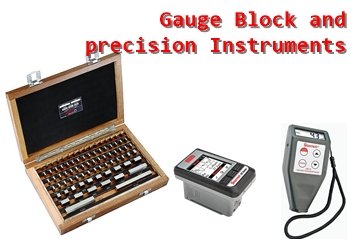

Precision Gauge Block set , Coating thickness gauge,

Ultrasonic Gauge, Durometer , surface roughness Testers

and more....
